1.2510-O1-SKS3

Cold work tool steel;oil hardening tool steel.It is relatively inexpensive containing small amounts of manganese,
tungsten and chromium. Hardening by oil quench minimizes distortion and cracking.
Enduse = blanking dies,cold forming dies and cutting tools operating at ambient temperature.For working tools, cutting blades,sizing and stamping tools.

Chemical Composition:

Grade

Standard

C

Si

Mn

P≤

S≤

Cr

V

W

1.2510

DIN

0.90-1.05

0.15-0.35

1.00-1.20

0.030

0.030

0.50-0.70

0.05-0.15

0.50-0.70

O1

AISI/SAE

0.85-1.00

0.10-0.50

1.00-1.40

0.030

0.030

0.40-0.60

≤0.30

0.40-0.60

SKS3

JIS

0.90-1.00

≤0.35

0.90-1.20

0.030

0.030

0.50-1.00

/

0.50-1.00

Heat Treatment: annealed

Hardness: max. 230 HB

Surface: surface flaws/cracks if any are removed by polishing. cleaning marks/scale pitting/peripheral decarburisation within the standard machining allowance is allowed.

US Test: SEP 1921 group 3, class D/d

Degree of Purity: DIN 50602, K4 max. 30

Microstructure: Carbide distribution as per Böhler classification Chart AL011DE10.91 edition 1984, aiming max. acceptable figures: diamter / thickness : up to 100 mm 3.3 ; 2.4 ; 1.4

                         100 - 250 mm 3.4 ; 1.5

                         251 - 400 mm 4.3 ; 3.5 ; 2.6

Test Certificate: EN 10204/3.1 with chem. analysis,hardness HB,heat treatment,US test,etc.

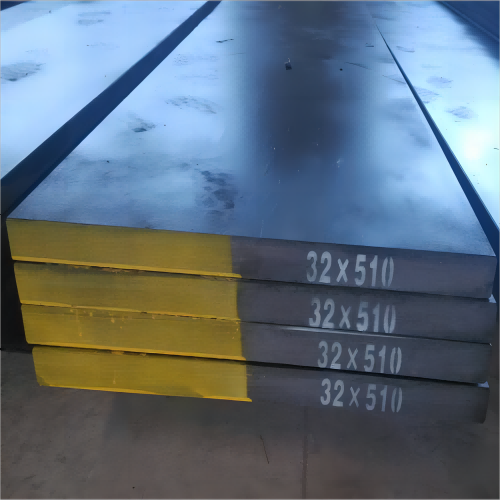

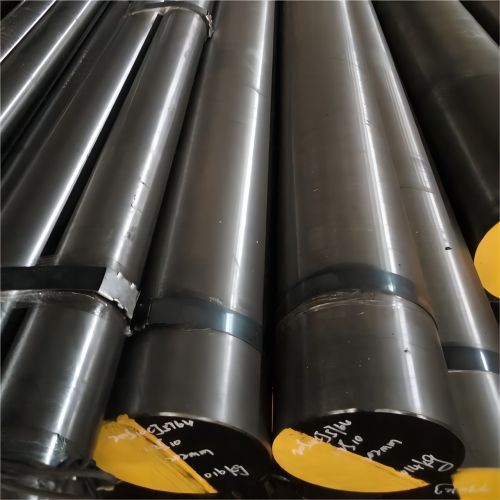

Round Bar: Ø12-400mm    Flat Bar: 12-400x100-750mm
